FFmate Web UI ​

The FFmate Web UI offers a clean, intuitive way to manage and monitor your FFmpeg jobs in real time.

You can easily track active tasks, configure watchfolders, create presets, and access detailed logs—all from your browser, without needing to use the API or command line.

Whether you're a developer, media technician, or workflow specialist, the Web UI helps you stay in control of your transcoding operations from start to finish.

The FFmate Web UI is divided into four main sections, each designed to simplify and streamline your media processing workflows:

  1. Dashboard – Monitor and manage all FFmpeg tasks in real time, including active, completed, and failed jobs.
  2. Watchfolders – Configure folders to automatically trigger tasks when new media files are detected.
  3. Presets – Define and reuse FFmpeg command templates for consistent, repeatable transcoding tasks.
  4. Logs – Access live system logs, including task execution, watchfolder activity, and background processing events.

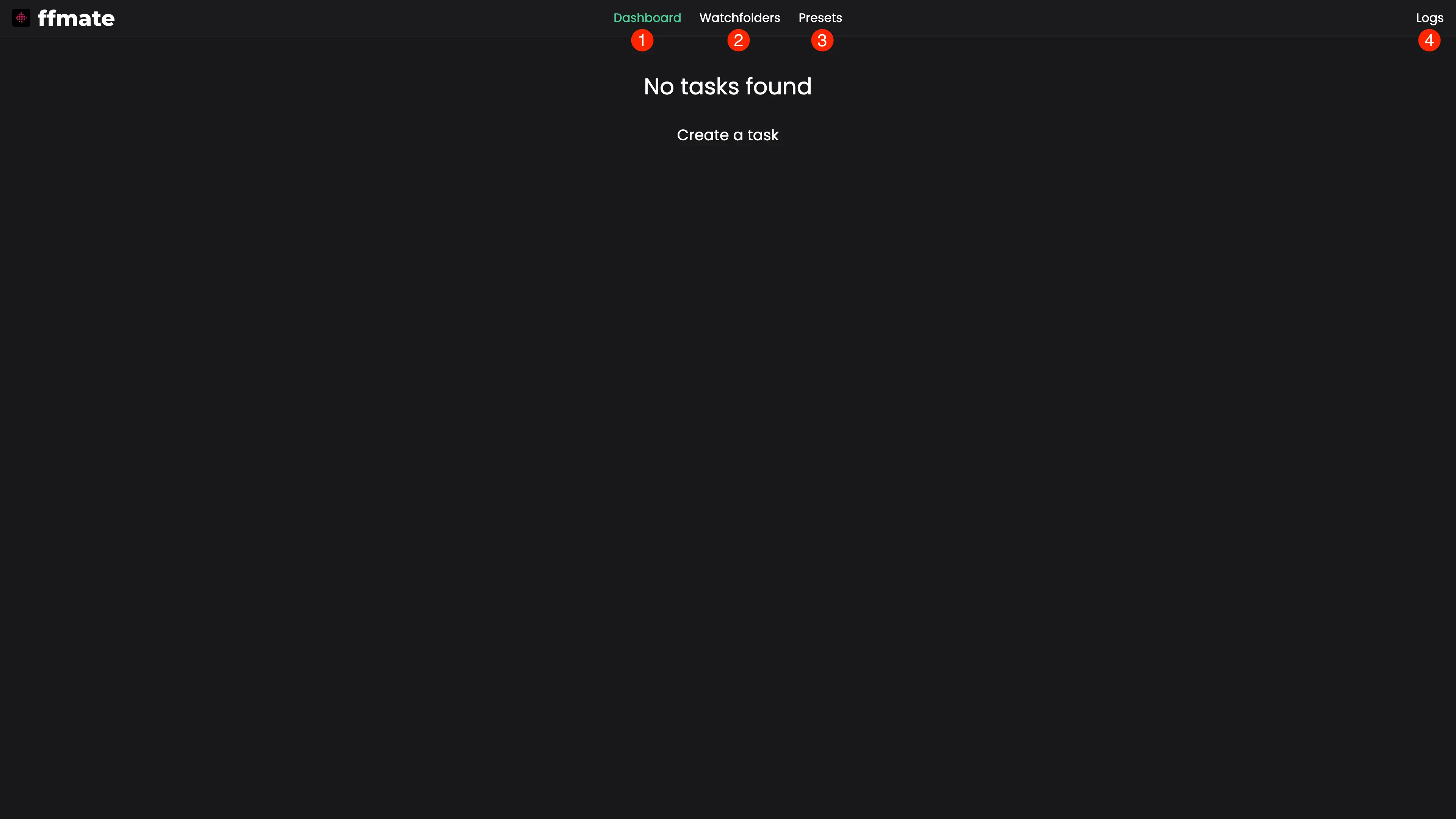

FFmate navigation bar featuring Dashboard, Watchfolders, Presets, and Logs sections, each marked with numeric indicators to guide users through the interface

Dashboard ​

The Dashboard provides a real-time overview of all FFmpeg tasks—letting you monitor progress, manage jobs, and review task details at a glance.

Monitoring Tasks ​

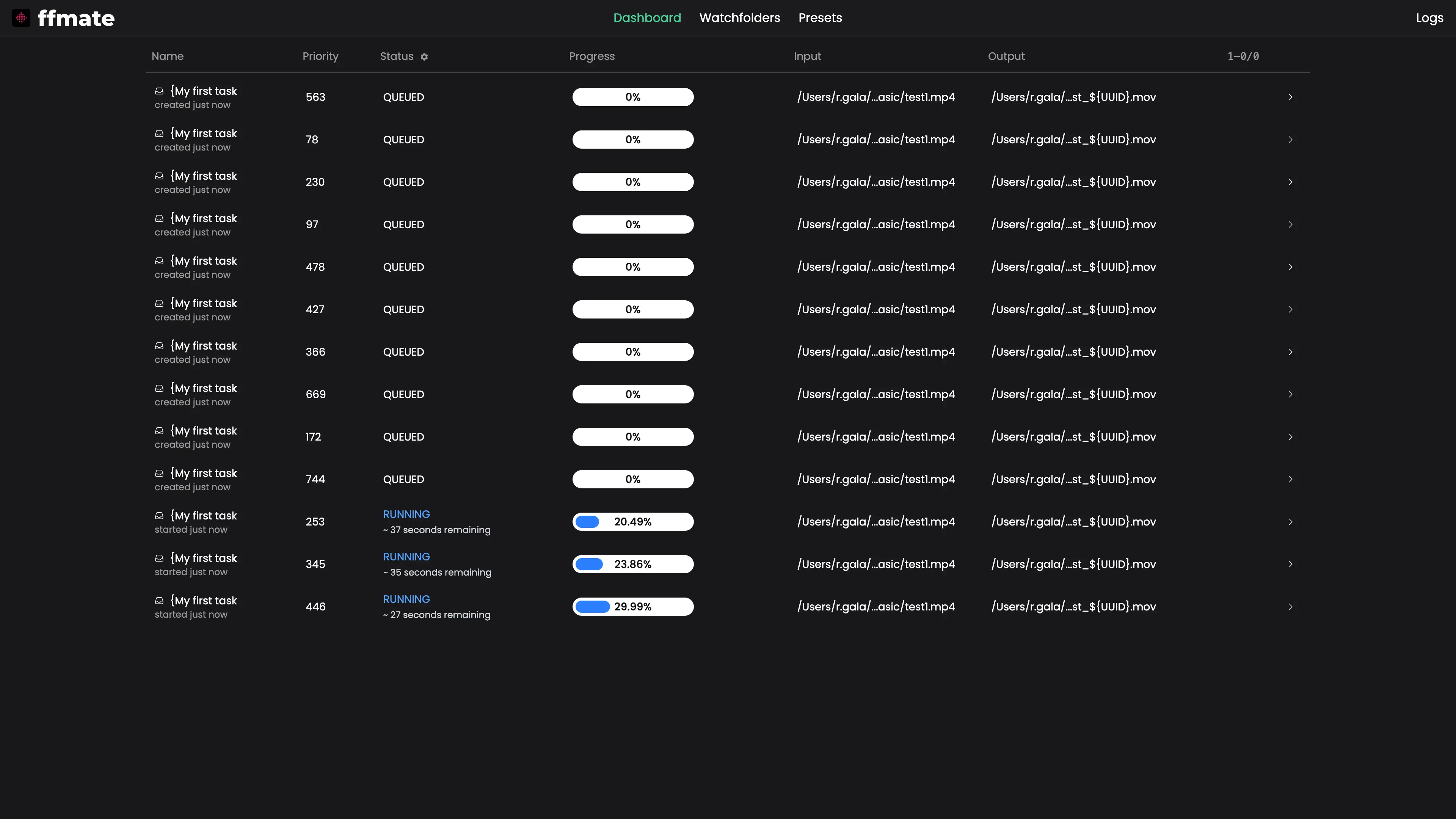

View all active and completed tasks in real time, including their status and progress.

FFmate task dashboard displaying a list of media processing tasks with columns for name, priority, status, progress, input file path, and output file path. Several tasks are queued at 0%, while others are running with real-time progress bars and estimated time remaining

Filtering Task Statuses ​

You can filter tasks by their current status to quickly focus on specific groups, such as running, failed, or completed jobs.

To filter the list, click the cogwheel icon in the status column header and select a status from the dropdown menu.

  • QUEUED – Task is waiting to be processed.
  • RUNNING – Task is currently being executed.
  • DONE_SUCCESSFUL – Task completed without errors.
  • DONE_ERROR – Task encountered an error.
  • DONE_CANCELED – Task was manually canceled.

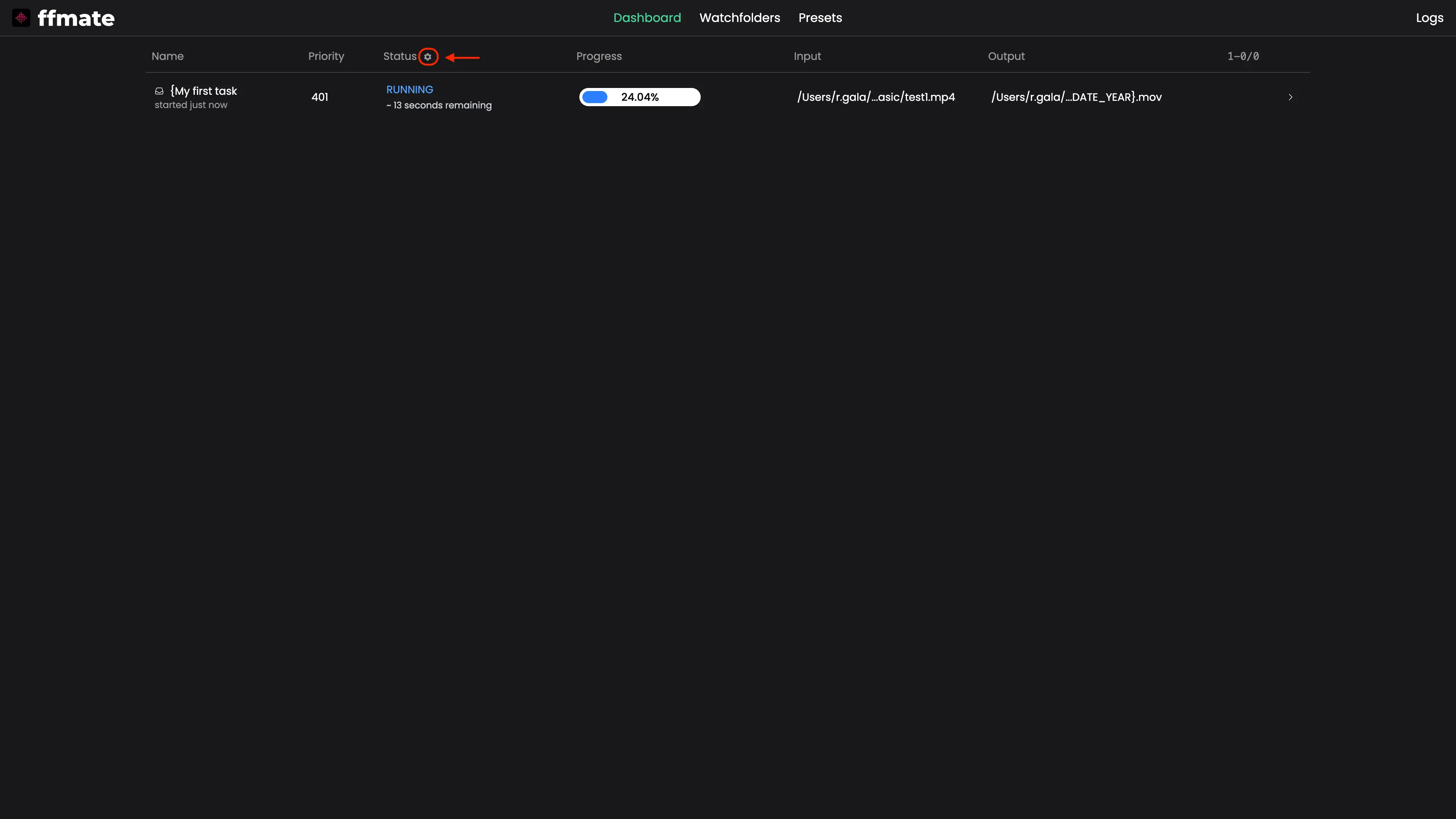

FFmate dashboard displaying a single active media processing task in RUNNING state with a live progress bar at 24.04%. The interface prominently highlights the status column filter icon, signaling support for filtering tasks by state such as queued, running, done_successful, done_error, done_canceled

Canceling Tasks ​

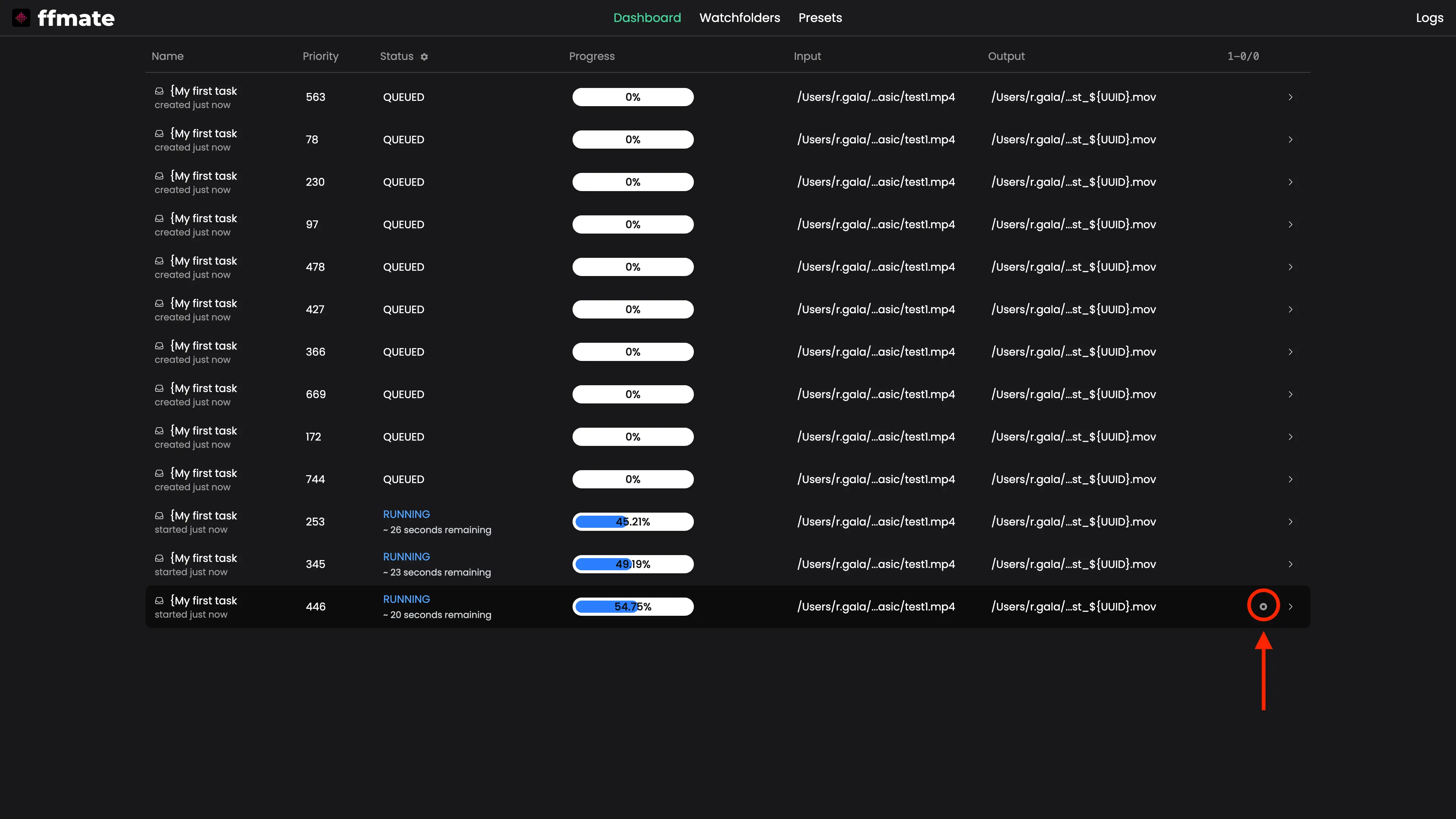

To stop a running task, hover over it to reveal the cancel icon on the right. Once clicked, the task will be halted immediately and marked as DONE_CANCELED.

FFmate dashboard showing multiple media processing tasks with progress indicators. One task is actively running at 54.76% completion. The interface highlights a circular cancel button on the right side of the row, indicating the ability to terminate individual tasks directly from the dashboard

Restarting Tasks ​

To re-run a completed or failed task, hover over it and click the restart icon. The task will be resubmitted with the same configuration and added back to the queue.

FFmate dashboard displaying a completed media processing task with a status of DONE_SUCCESSFUL and a progress bar showing 100%. The interface highlights a circular restart icon on the right side of the task row, indicating the option to rerun or reprocess completed tasks directly from the dashboard

Deleting Tasks ​

To remove a task from the list, hover over it and click the delete icon. Deleting a task will permanently remove both the task and its logs from the database.

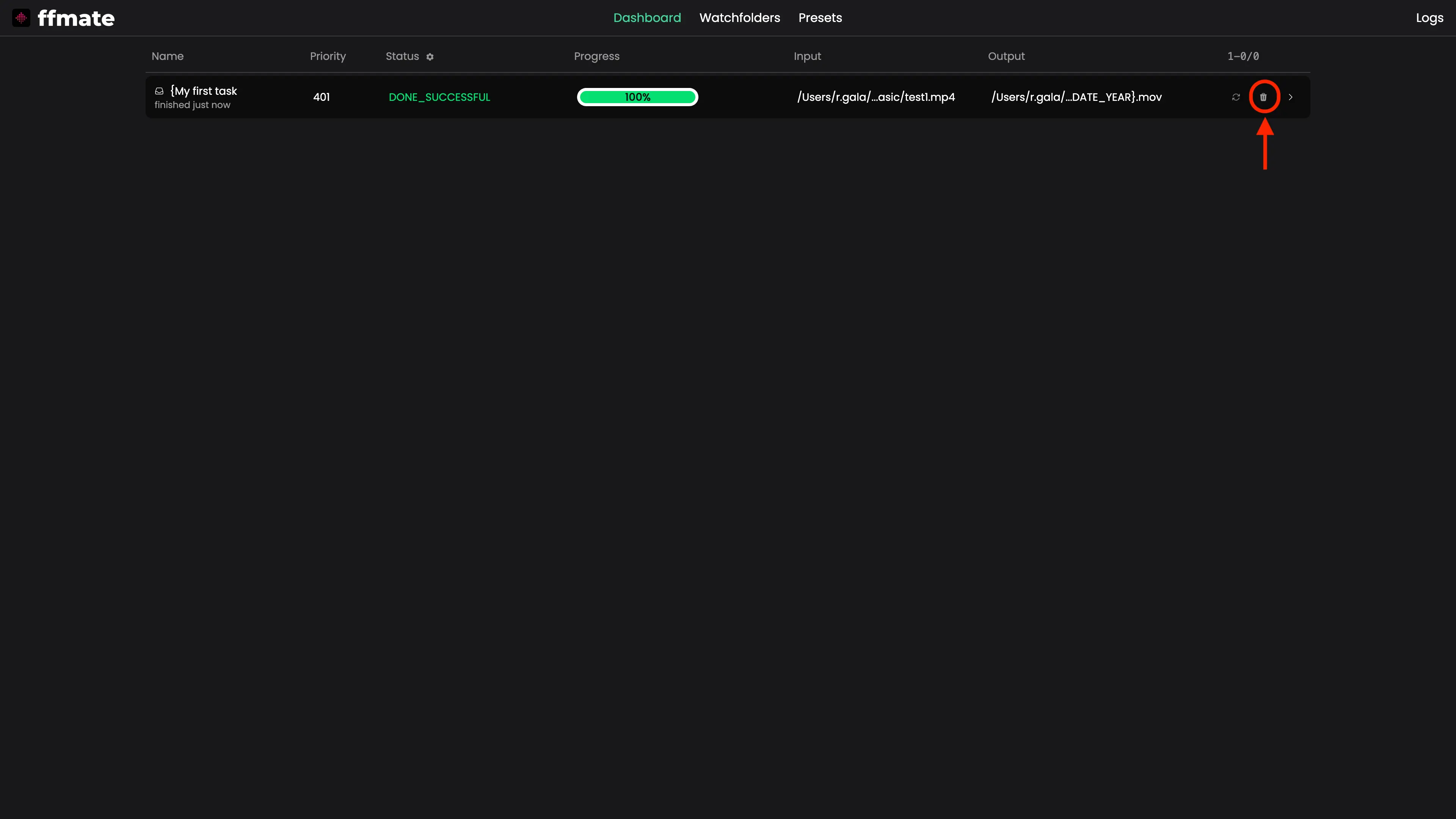

FFmate dashboard displaying a successfully completed media processing task marked as DONE_SUCCESSFUL with a 100% progress bar. The interface highlights the trash bin icon on the right side of the row, indicating the option to delete completed tasks directly from the dashboard UI

Task Details ​

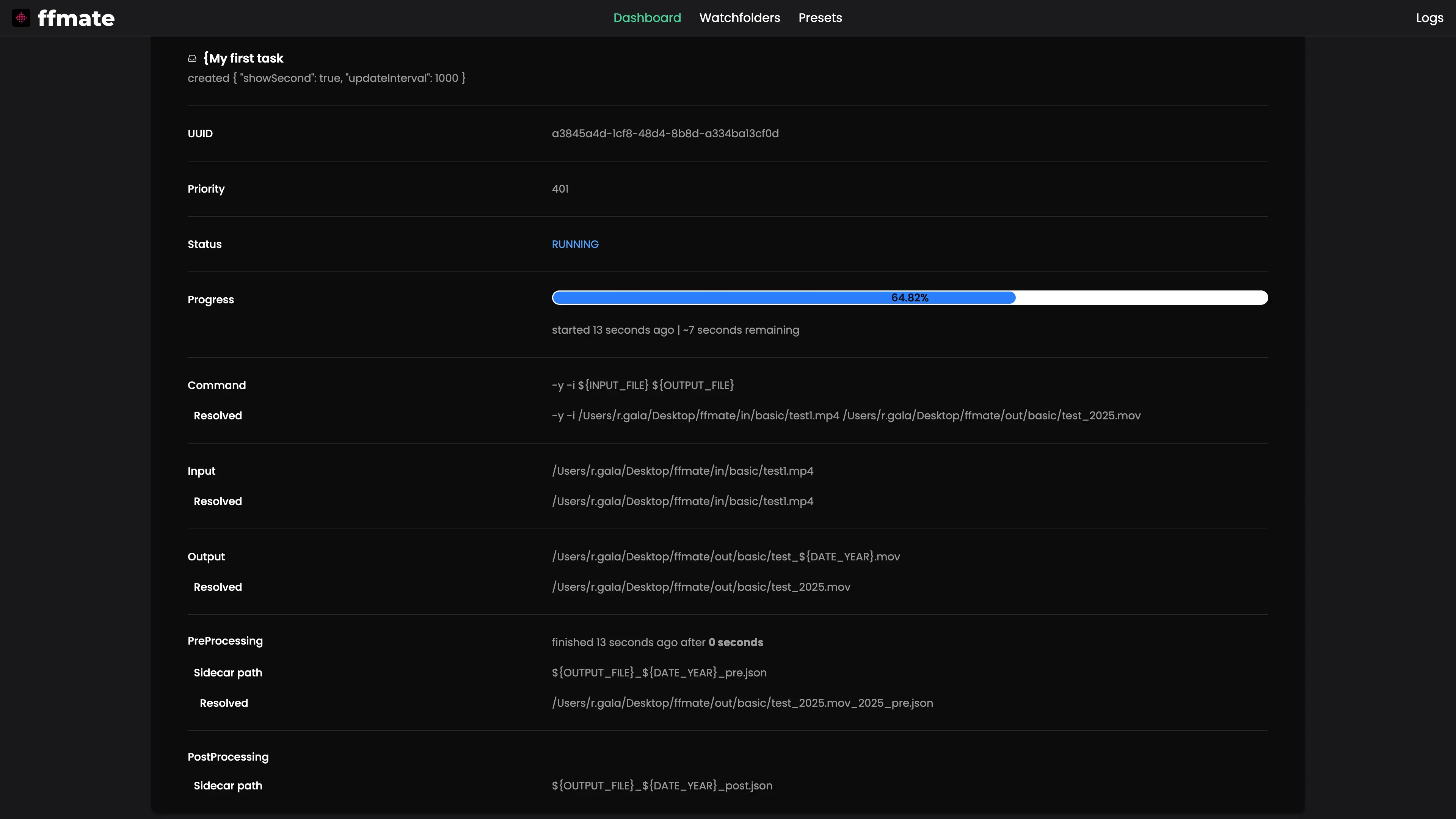

Click on any task to see its full execution details, including progress, FFmpeg command, input/output paths, and pre/post-processing information.

FFmate task details view displaying real-time information for an active media processing job. The interface shows UUID, priority, status, and progress bar at 64.82%, along with resolved FFmpeg command, input and output file paths, and pre/post-processing sidecar file locations using dynamic DATE_YEAR placeholders

Watchfolders ​

Watchfolders let you automate task creation by continuously monitoring specific folders and triggering jobs when new media files are detected.

Creating a Watchfolder ​

Click the plus (+) button in the bottom-right corner of the Watchfolders page to create a new watchfolder.

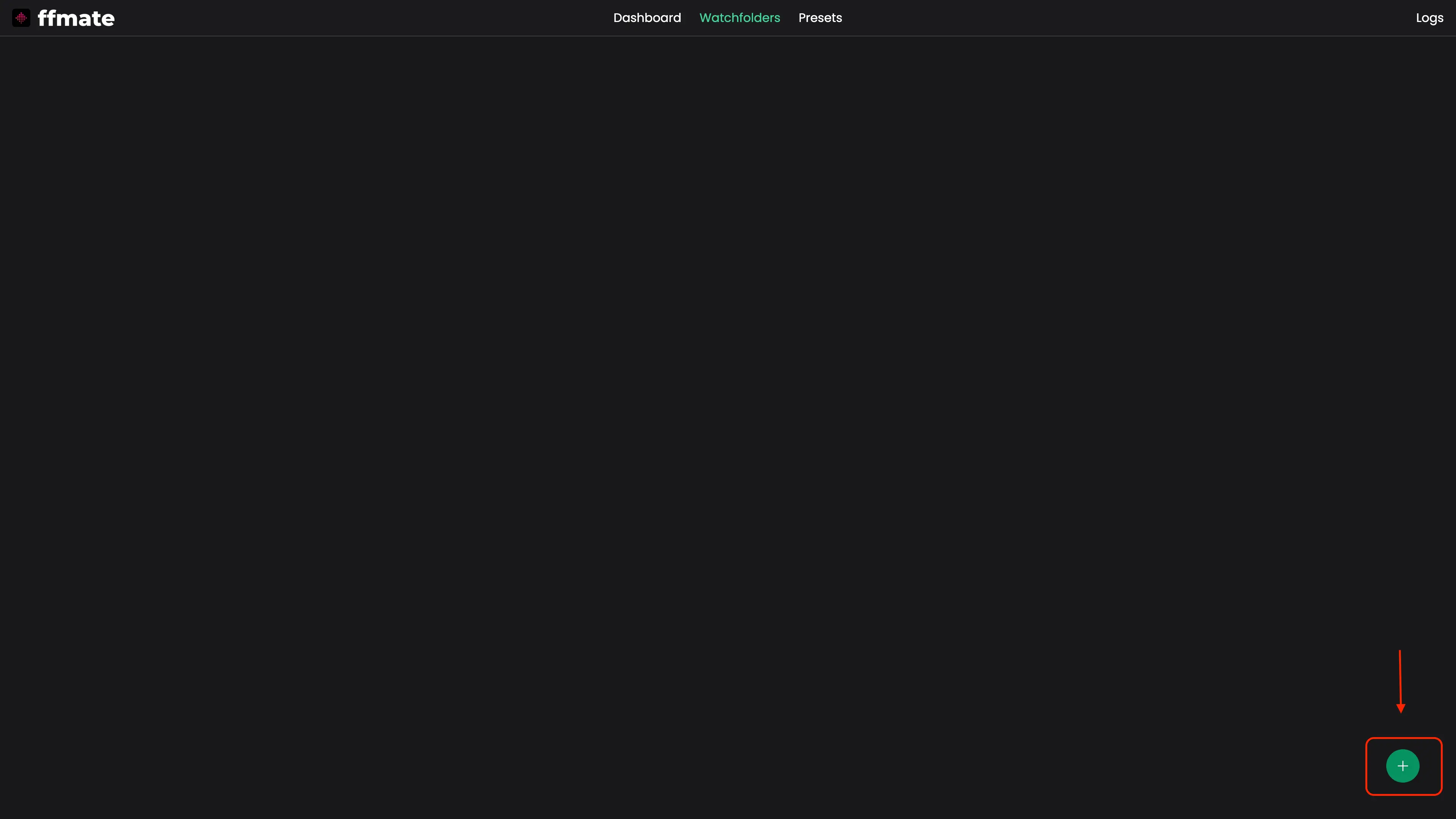

FFmate watchfolder interface with an empty state and a green circular plus button highlighted in the bottom-right corner, indicating the ability to add a new watchfolder for automated media ingestion and processing

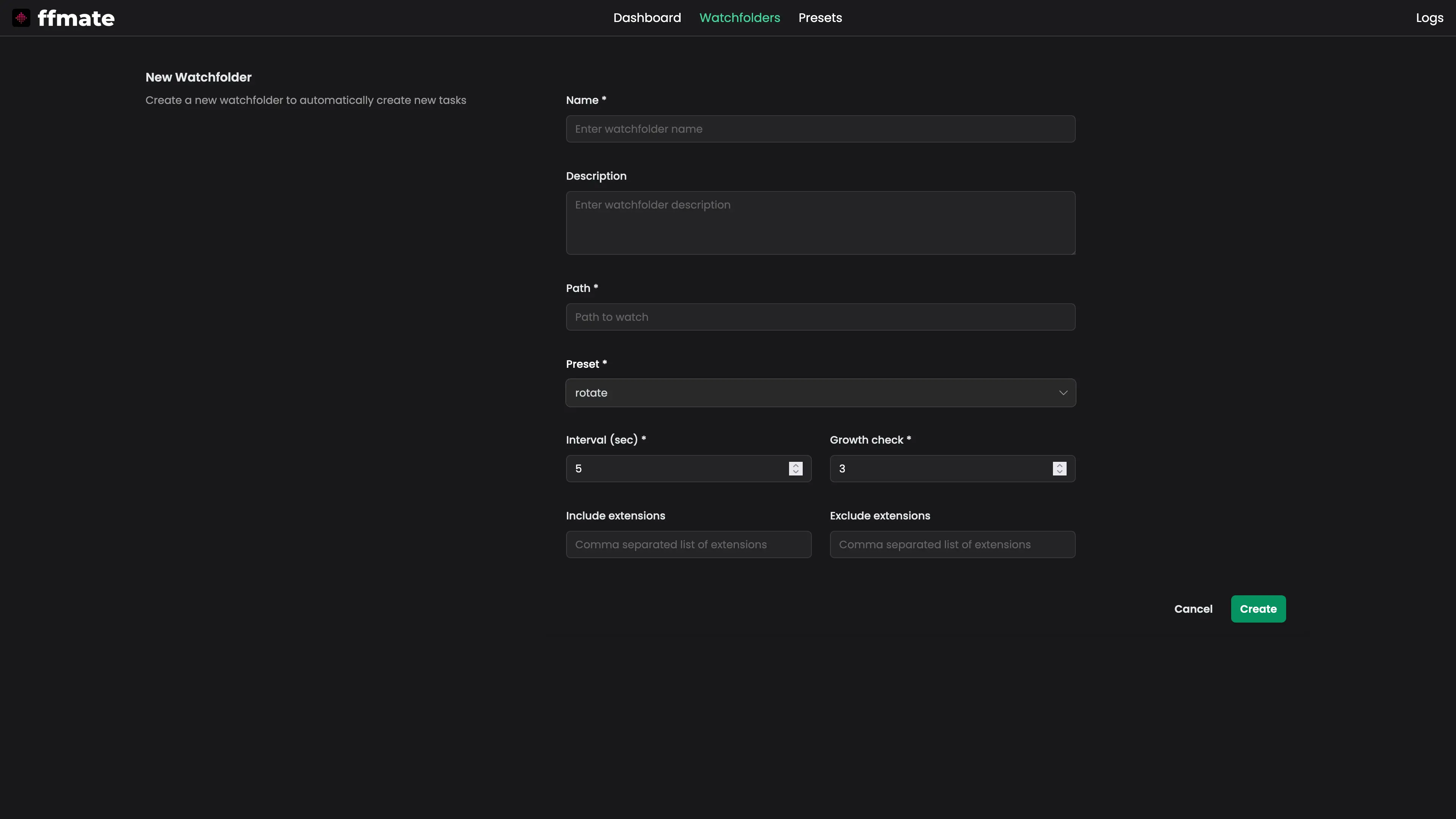

Specify the folder path, preset, scan interval, growth check duration, and optional file extension filters.

FFmate interface displaying the 'New Watchfolder' form, allowing users to configure automated task creation by specifying folder path, preset, scan interval, growth check duration, and optional file extension filters. Form includes fields for name, description, and a Create button to finalize the setup

Checking Configured Watchfolders ​

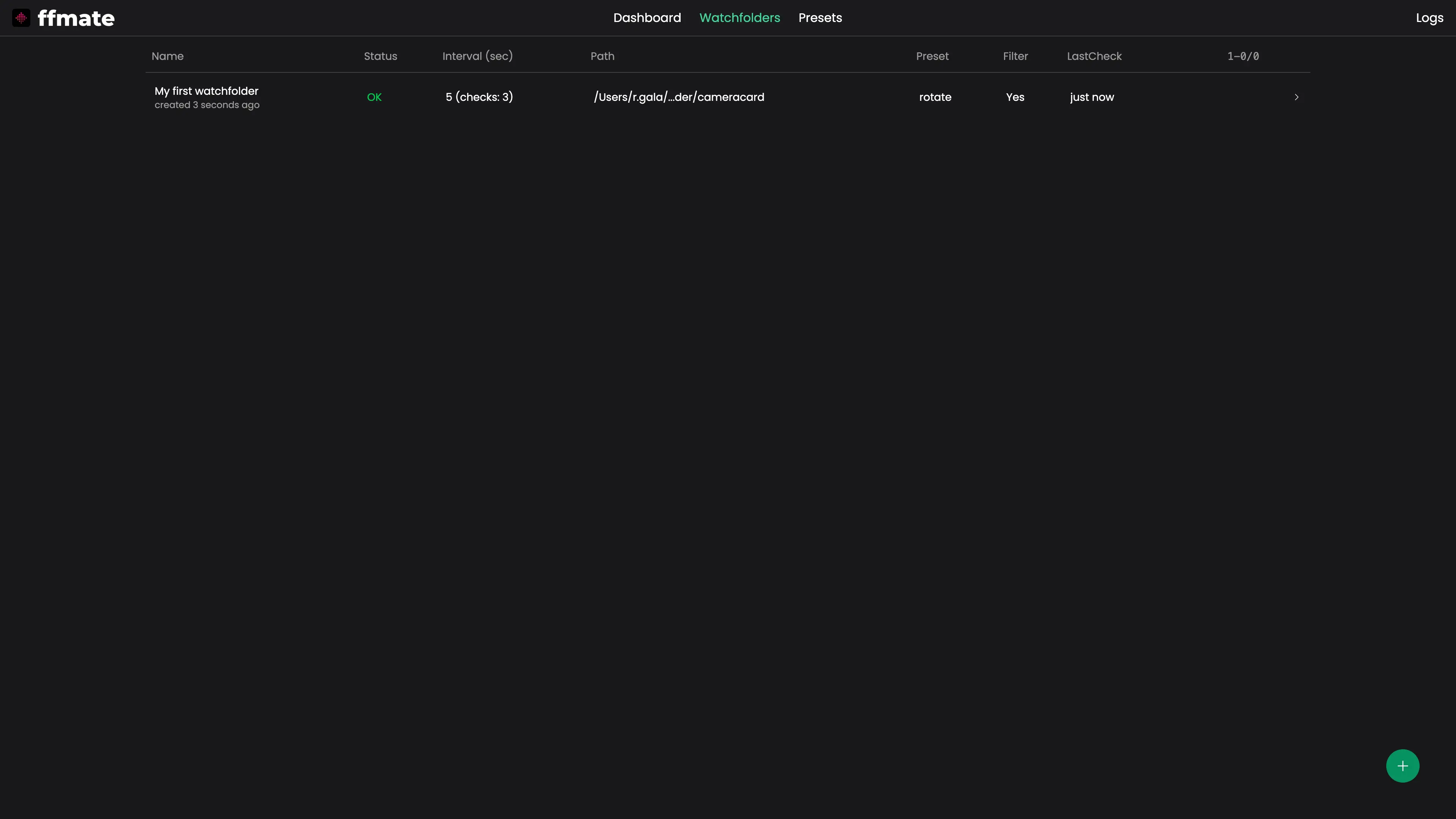

The watchfolder list displays all configured watchfolders along with their current status, assigned preset, and monitored folder path.

FFmate watchfolder overview displaying a single configured watchfolder with status OK, a 5-second scan interval, active file filtering, and an assigned preset named 'rotate'. The interface shows the folder path, last check timestamp, and a green plus button for adding additional watchfolders

Checking Watchfolder Details ​

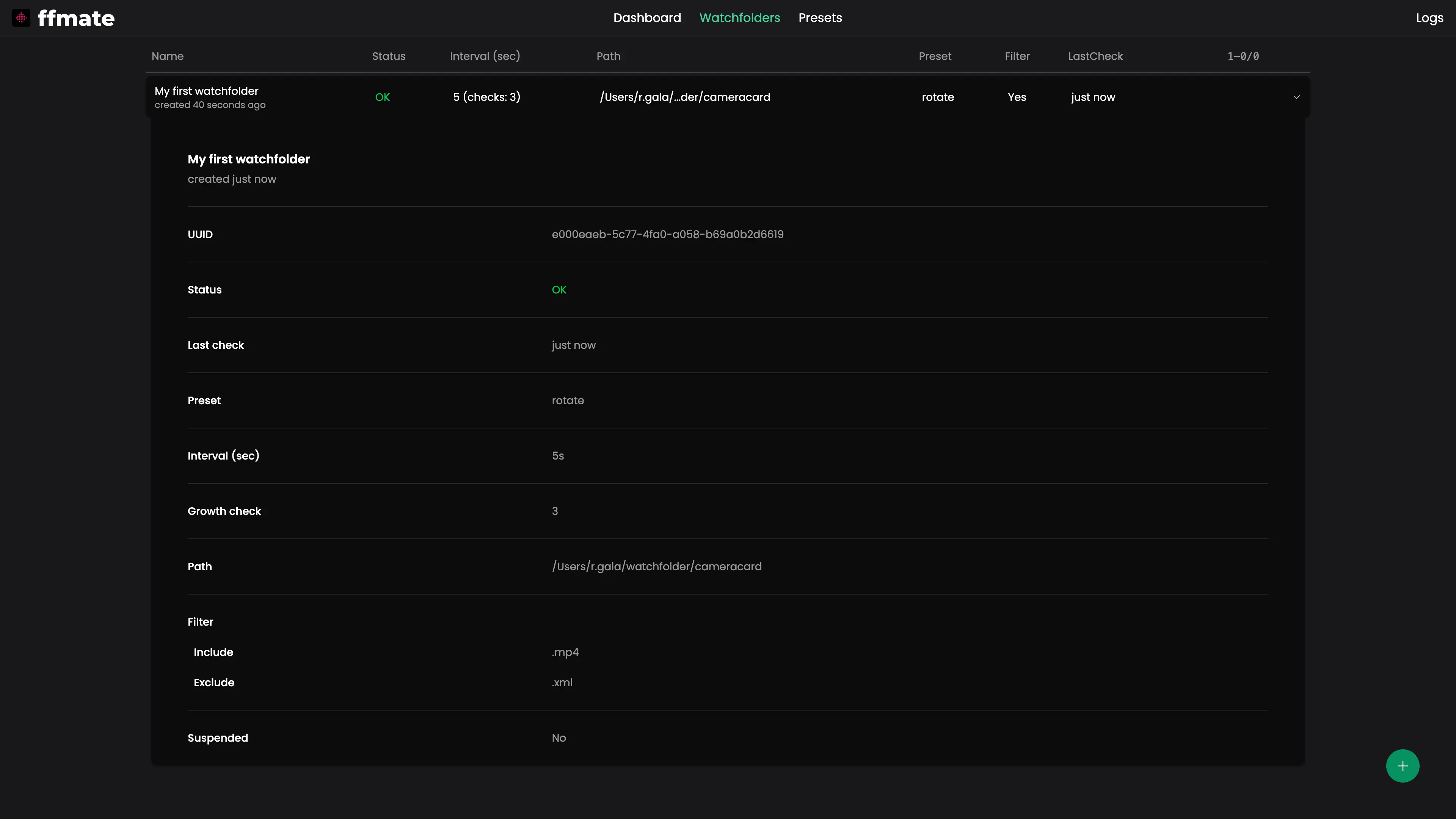

Click on any watchfolder to view its full configuration, including assigned preset, filter rules, scan settings, and monitored folder path.

FFmate interface showing expanded details of a configured watchfolder, including UUID, status, last check timestamp, assigned preset, scan interval, growth check value, folder path, and file extension filters. The watchfolder is active with status OK and filters configured to include .mp4 and exclude .xml files

Updating a Watchfolder ​

Hover over a watchfolder in Watchfolders, click the pencil icon, adjust any field in the Edit Watchfolder form (path, preset, scan interval, growth check, filters), then click Save. The watchfolder will restart with the new configuration shortly after the update.

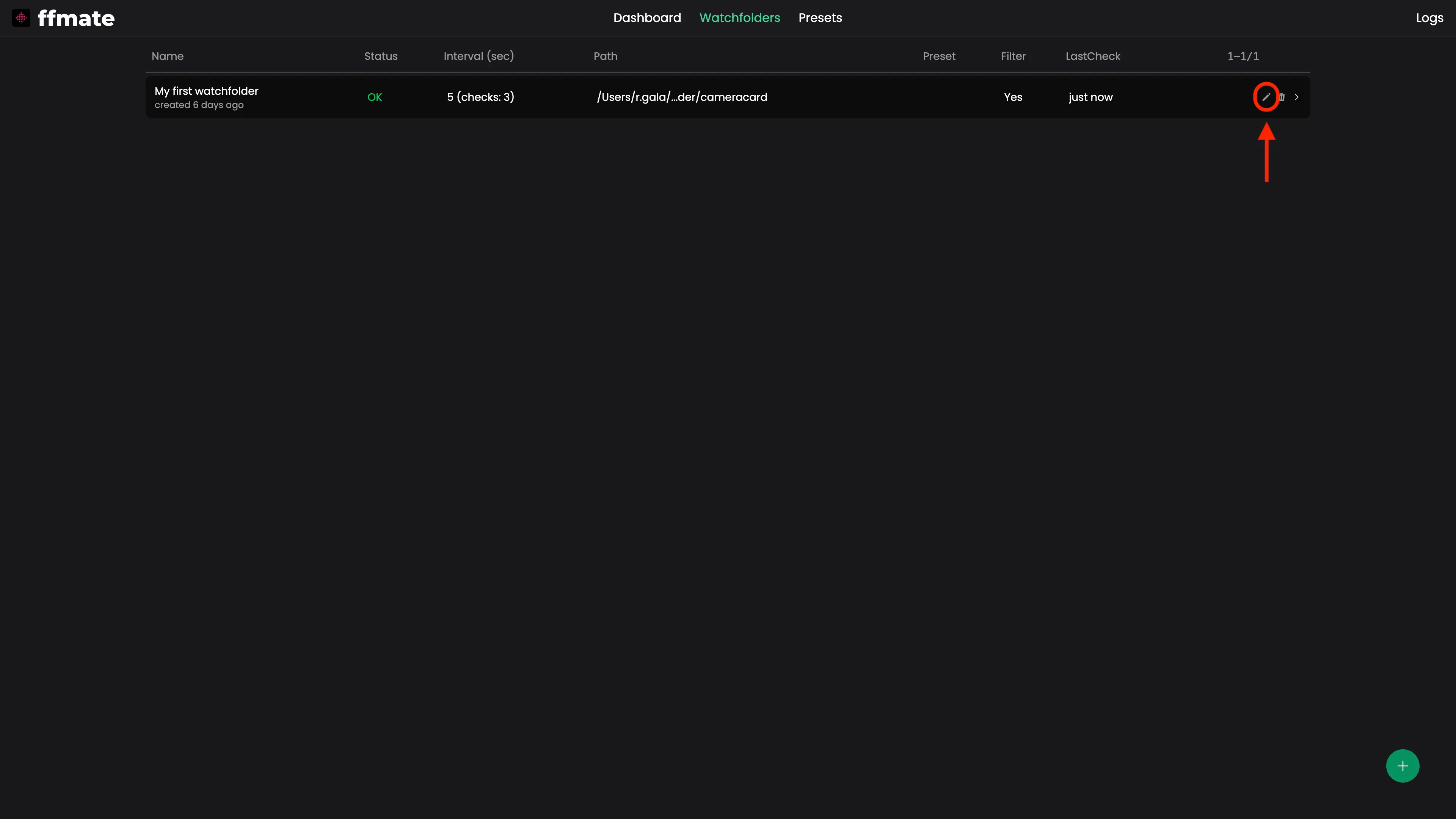

FFmate Watchfolders list showing a single configured watchfolder named “My first watchfolder” (created 6 days ago) with status OK, a 5 sec scan interval (3 checks), monitored path “/Users/r.gala/.../cameracard”, filters enabled, and last check “just now”; the edit (pencil) icon is highlighted to indicate updating the watchfolder

Deleting Watchfolders ​

Hover over a preset in Presets, click the delete icon next to a watchfolder to remove it. FFmate will immediately stop monitoring the associated folder.

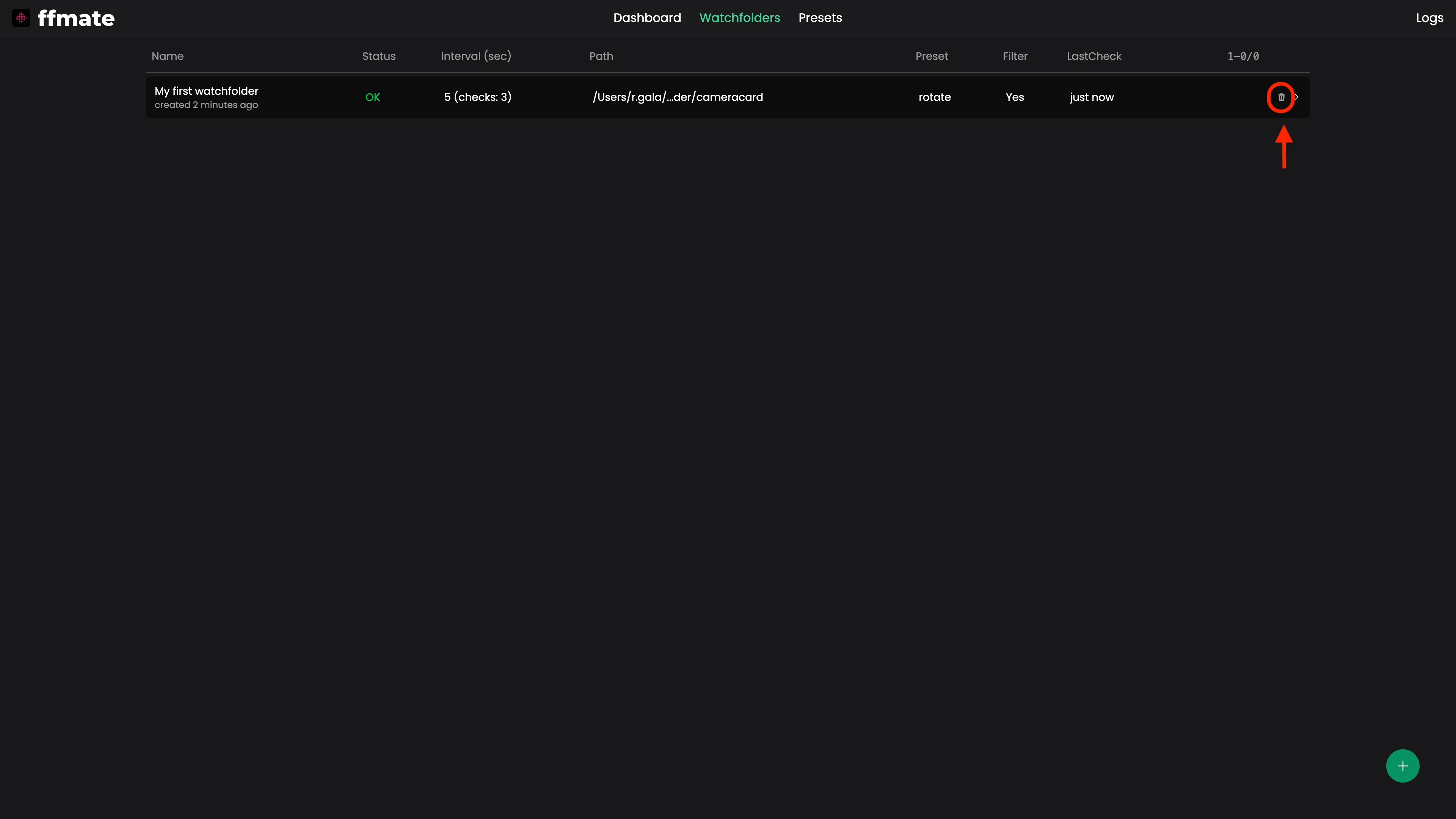

FFmate watchfolder management interface showing a configured watchfolder with status OK and an active delete icon highlighted on the right side of the row, indicating the option to remove the watchfolder from the system. The UI includes path, scan interval, preset, and last check timestamp

Presets ​

Presets in FFmate are reusable templates that simplify task creation by letting you predefine FFmpeg commands, output naming patterns, priorities, and optional pre/post-processing scripts.

Creating a Preset ​

Click the plus (+) button in the bottom-right corner of the Presets page to create a new Preset.

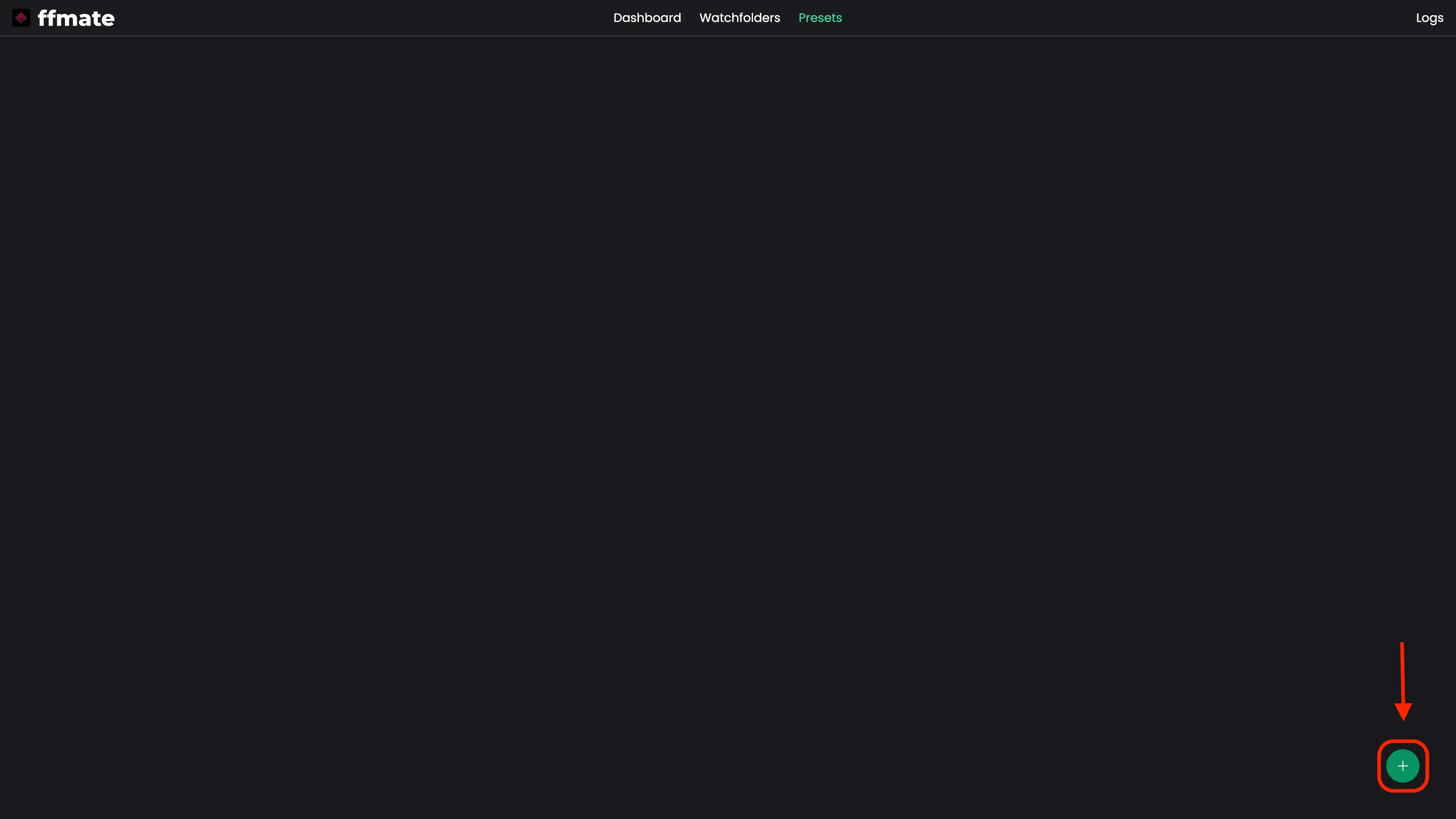

FFmate presets interface displaying an empty state with a green circular plus button highlighted in the bottom-right corner, indicating the option to create a new encoding preset for automated media processing workflow

You can create your own custom preset or choose from a set of predefined, ready-to-use presets provided by the FFmate team.

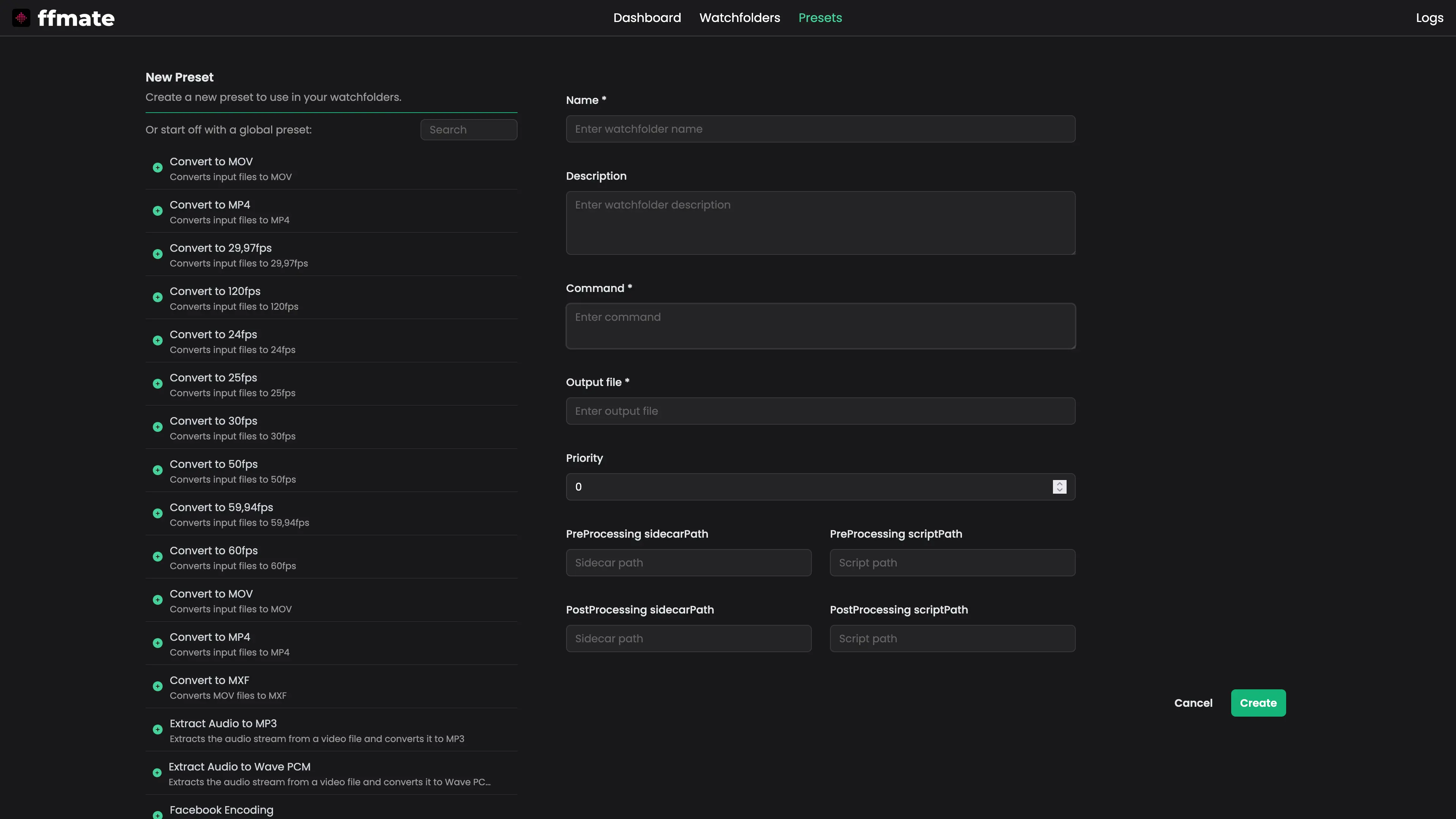

FFmate preset creation interface displaying a form for defining a new encoding preset, with fields for name, description, FFmpeg command, output file, priority, and optional pre/post-processing script and sidecar paths. The left panel lists global presets like frame rate conversion, format changes, and audio extraction

List of Active Presets ​

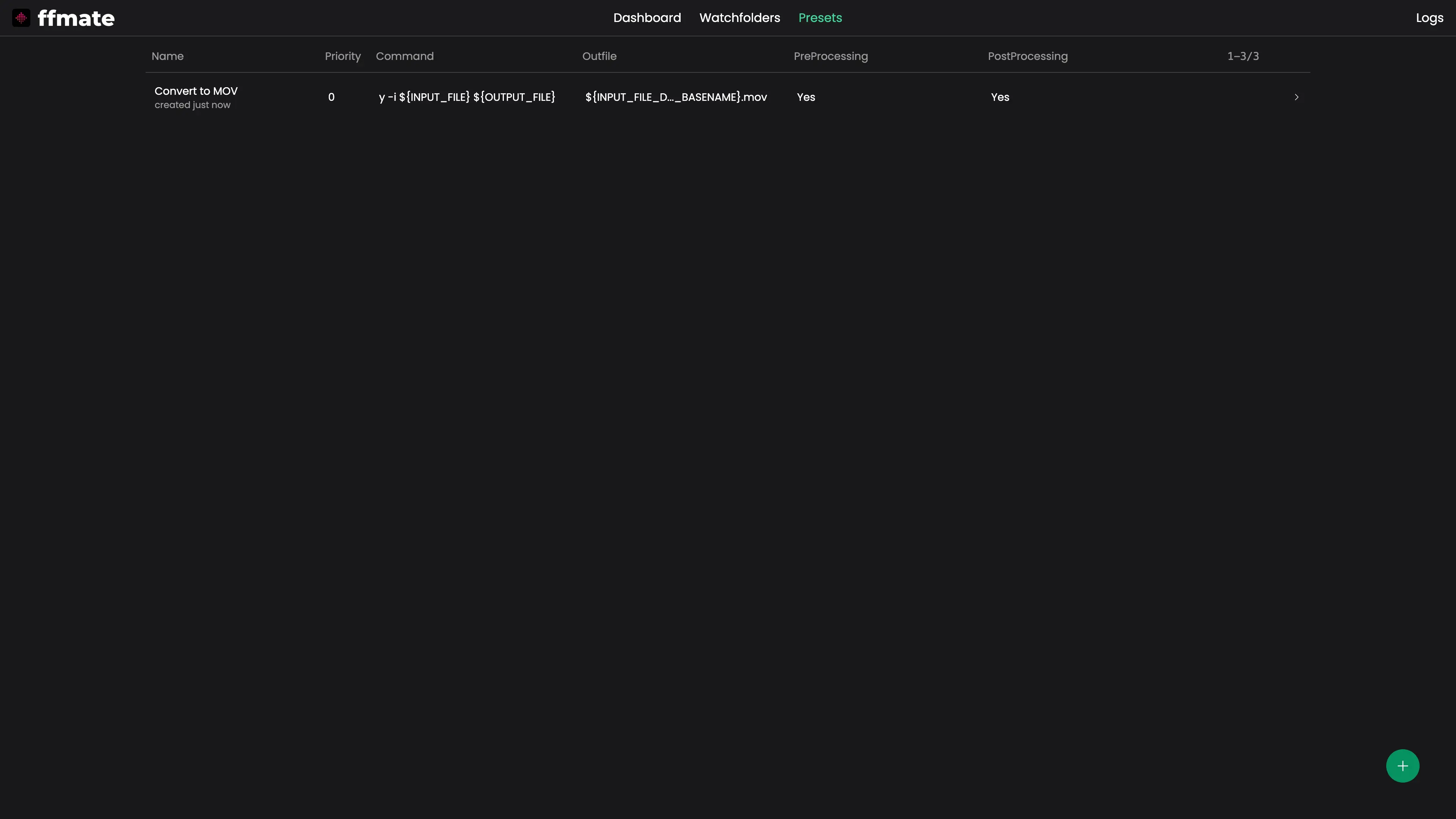

View all configured presets along with their name, description, priority, and output file pattern.

FFmate presets interface displaying a custom encoding preset titled 'Convert to MOV', with a priority of 0, defined FFmpeg command using input/output placeholders, dynamic output filename, and active pre- and post-processing scripts. The UI includes a green plus button to add additional presets

Checking Preset Details ​

Click on any preset to view its full configuration, including the FFmpeg command, output pattern, priority, and any pre/post-processing settings.

FFmate interface showing expanded details of a configured watchfolder, including UUID, status, last check timestamp, assigned preset, scan interval, growth check value, folder path, and file extension filters. The watchfolder is active with status OK and filters configured to include .mp4 and exclude .xml files

Updating a Preset ​

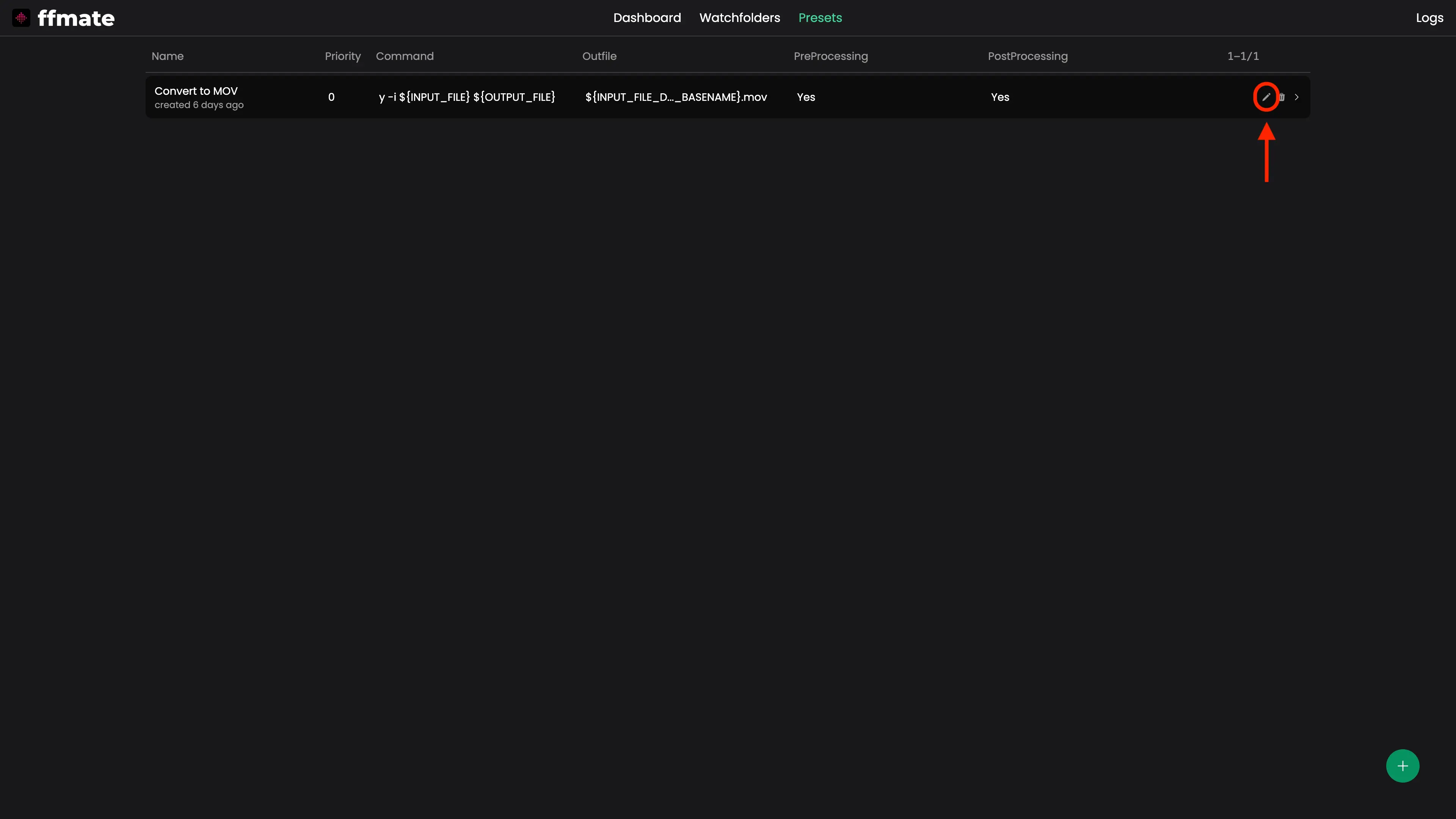

Hover over a preset in Presets, click the pencil icon, modify any fields in the Edit Preset form (name, FFmpeg command, output pattern, priority, scripts), then click Save.

FFmate Presets list showing a single configured preset named “Convert to MOV” (created 6 days ago) with priority 0, FFmpeg command -y -i ${INPUT_FILE} ${OUTPUT_FILE}, output pattern ${INPUT_FILE_D..._BASENAME}.mov, pre- and post-processing enabled; the edit (pencil) icon is highlighted to indicate updating the preset

Removing a Preset ​

Hover over a preset in Presets, Click the delete icon next to a preset to remove it.

FFmate interface showing expanded details of a configured watchfolder, including UUID, status, last check timestamp, assigned preset, scan interval, growth check value, folder path, and file extension filters. The watchfolder is active with status OK and filters configured to include .mp4 and exclude .xml files

Accessing Real-Time Logs ​

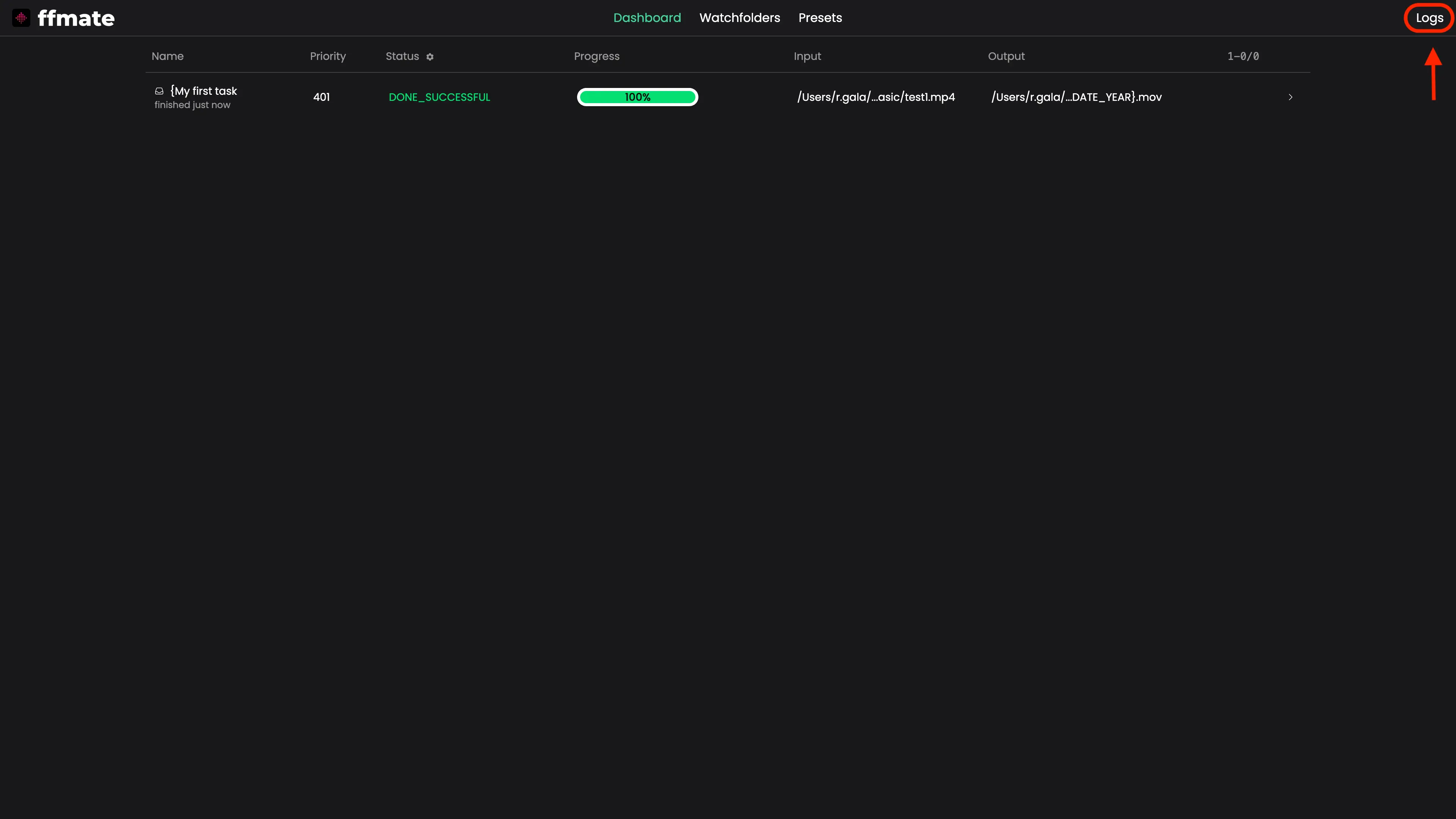

Click the Logs icon in the top-right navigation bar to open a real-time log window at the bottom of the screen.

FFmate dashboard interface showing a completed media processing task with a highlighted 'Logs' button in the top-right corner, indicating access to detailed execution logs for monitoring and debugging purposes. Task status is marked as DONE_SUCCESSFUL with a 100% progress bar and defined input/output paths

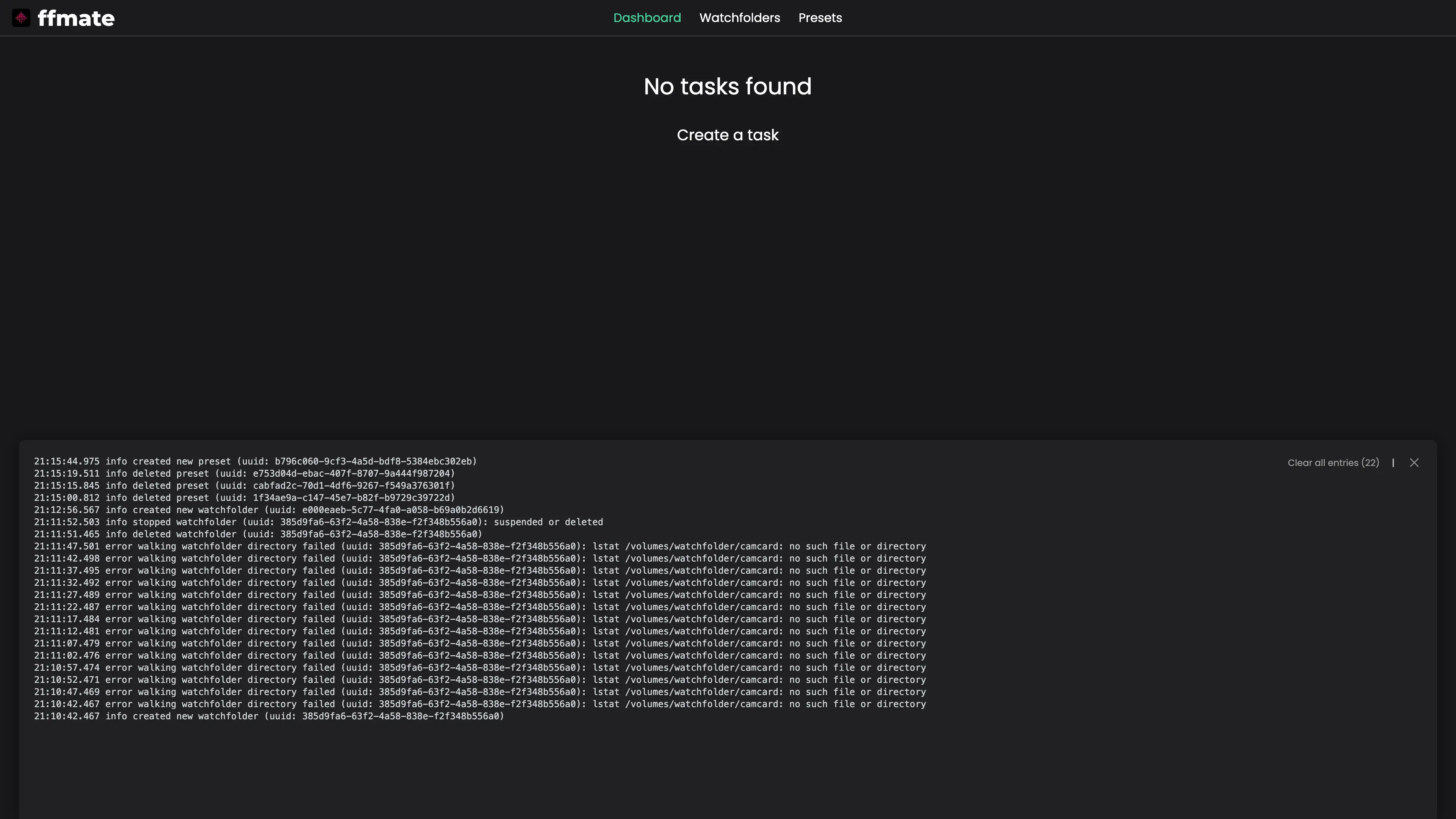

This view shows live FFmate activity, including task execution, watchfolder events, and system messages.

FFmate dashboard displaying an empty task list with the logs panel expanded, showing system-level logs related to preset and watchfolder creation, deletion, and directory scan errors. Entries include UUID references, timestamps, and repeated errors indicating missing directories during watchfolder polling
